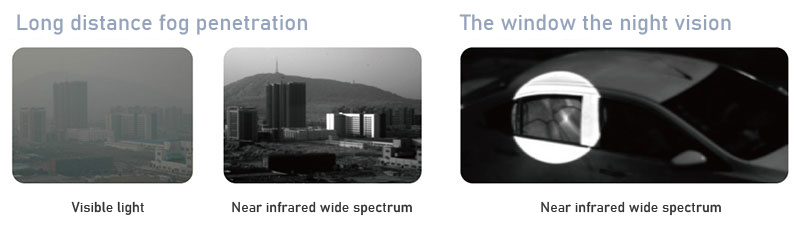

GA1280 is a near infrared wide spectrum camera. Adopt advanced extremely low illuminance detection technology, can use atmospheric glow imaging under extremely weak light environment, has extremely high sensitivity in the near infrared Band (700~1000m QE≥50%). Compared with visible light, low light and thermal imager, it has the following advantages: it can quickly detect and identify targets, can penetrate smoke, haze and sand dust imaging, and can image day and night; Can be observed through colored glass, car Windows, sunglasses and some polymer plastics; Can be concealed reconnaissance, lighting beam will not be human eyes and visible light camera, low light night vision instrument and thermal imaging instrument and other traditional equipment detection; It can easily and quickly detect laser targets, and is widely used in night covert reconnaissance forensics, day and night surveillance, target identification in harsh environment, Through the fog imaging, camouflage identification, low-light environment imaging, day and night imaging, search and rescue, etc.
● Night concealed reconnaissance evidence,day and night surveillance
● Target recognition in harsh environment,Through the fog imaging
● Camouflage identification,search and rescue,etc
● Low light environment imaging,day and night imaging
● Laser spot detection
● Iris recognition,fluorescence imaging,silicon ingot detection,etc
Spectral response | 400nm ~1200nm | Interface | |
pixel | 1280×1024 | Digital output | USB/CameraLink/HD-SDI |
Like yuan Size | 10um | Control Interface | RS-422 |
Minimum sensitivity @F12 | 3x10-4Lux | LensInterface | CInterface |
Image | Power supply | ||
Frame frequency | 25Hz/40Hz@SXGA, 60Hz@720p | Power supply input | 12VDC |
Exposure time | 20us~25ms | Power consumption | <3.8W@In full frame mode |
Dynamic range | ≥80dB | Environmental adaptability | |
Onboard Image processing | Blind yuan to replace | Working temperature | -20℃~+60℃ |
Storage temperature | -40℃~+70℃ | ||
Physical properties | |||
Weight | 170g | ||
Size | 47mmx47mmx63mm （w×h×l） |
Key words:
environment
infrared
quickly
Classification:
Summary:
Near infrared wide spectrum camera
