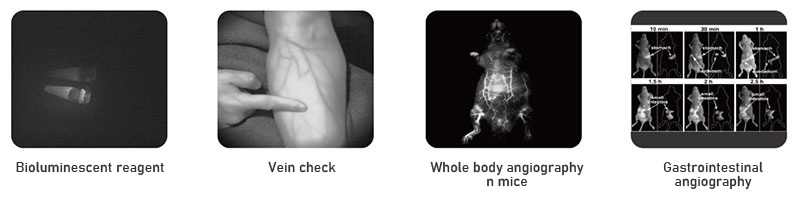

NIRII - MS combines NIRII fluorescence imaging technology with traditional fluorescence microscopy technology, and develops a novel NIRII fluorescence forward microscopy imaging system with wide field excitation and array detection, which can achieve optical characterization of NIRII fluorescence probes and imaging of living biological samples and thick biological tissues with large depth and high spatial and temporal resolution. It not only achieves greater imaging depth (> 1.2mm) and higher Resolution(3μm) compared to visible and NIR region I, but also achieves a higher SIGNal-to-noise ratio for NIR region II fluorescence in vivo imaging, and can provide external expansion functions or configurations according to your requirements.
Imaging spectral range | 900-1700nm, or can be upgraded to achieve 400-1700nm probes if required |
Excitation wavelength | 808nm,or 660nm,770nm,785nm,793nm,830nm,880nm,915nm,940nm,980nm,etc. |
Detection wavelength | Single channel:>900nm,>1200nm,>1300nm,>1500nm |
The camera parameters | 25um/pixel or15um/pixel |
Imaging frame rate | Up to 25 frames per second |
Objective | Near-infrared special objective lens (1.25x, 3.3×, 5x, 10x, 25x, 60x) |
Microscope frame | Including X-Y-Z three-dimensional space adjustment, stroke 200×100×150××Y×Zmm), with 1um digital display optical ruler |
Objective table | 280×380mm large Size loading platform, can be placed various large and small animal models |
Fall shot lighting | 5WLED lighting, easy to look for live samples under eyepiece observation |
| Transmitted light | 5WLED lighting, easy to look for live samples under eyepiece observation |
